• AudioControl ACM-2.300 2 Channel Micro Amplifier

    Audiocontrol

  • $529.00 $550.00

  • Share this product

Description

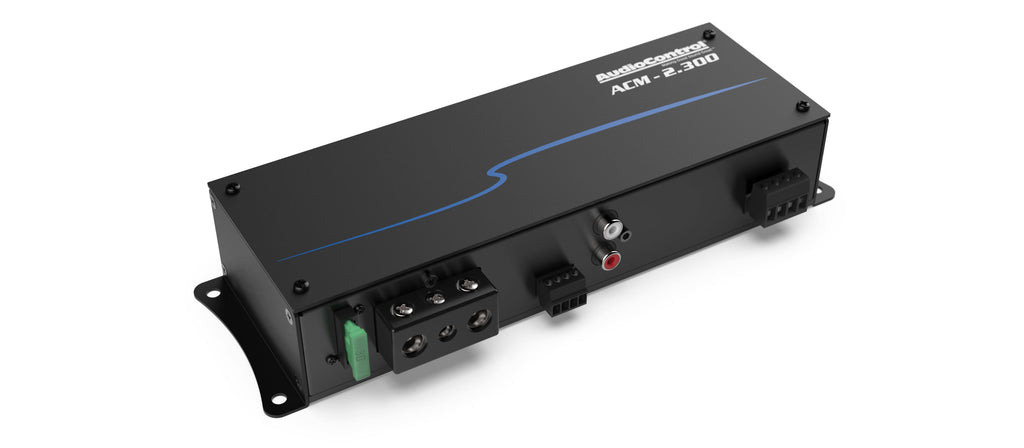

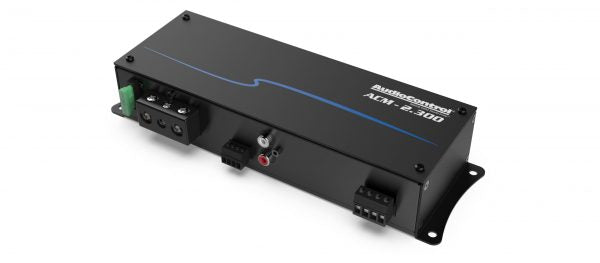

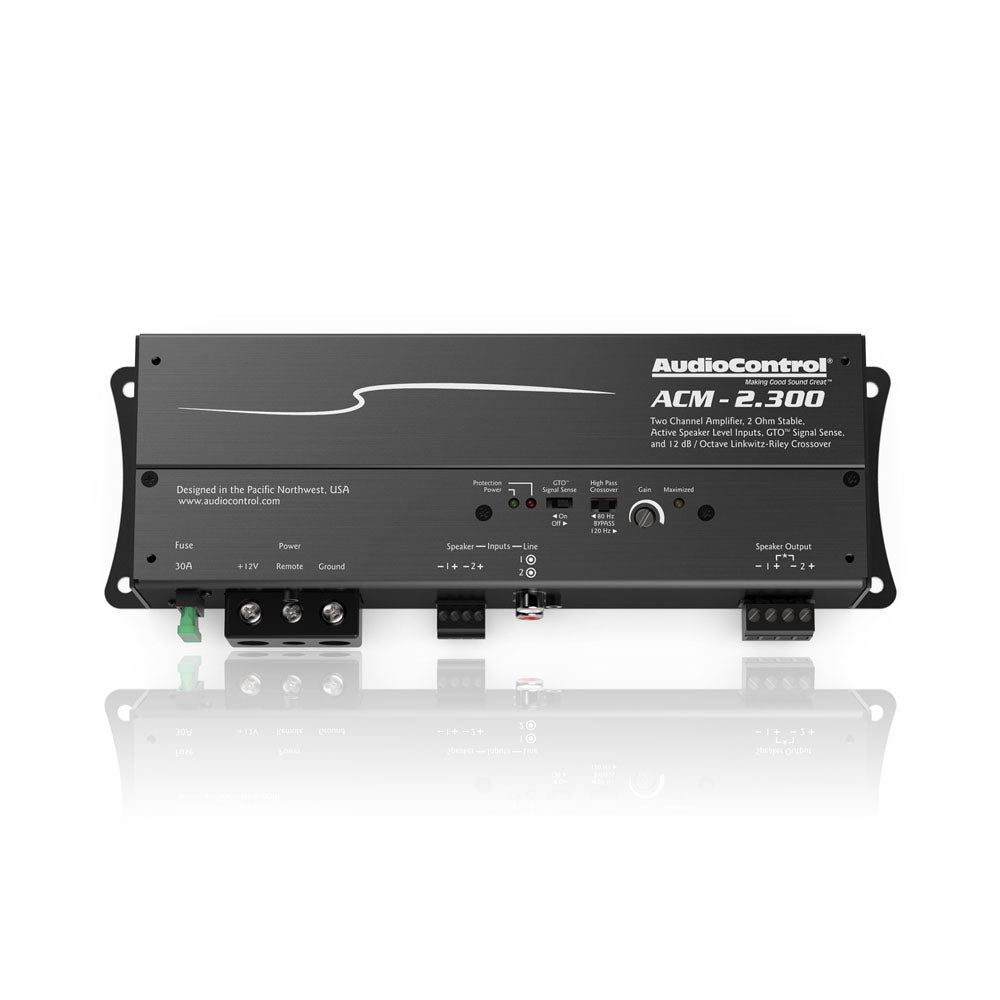

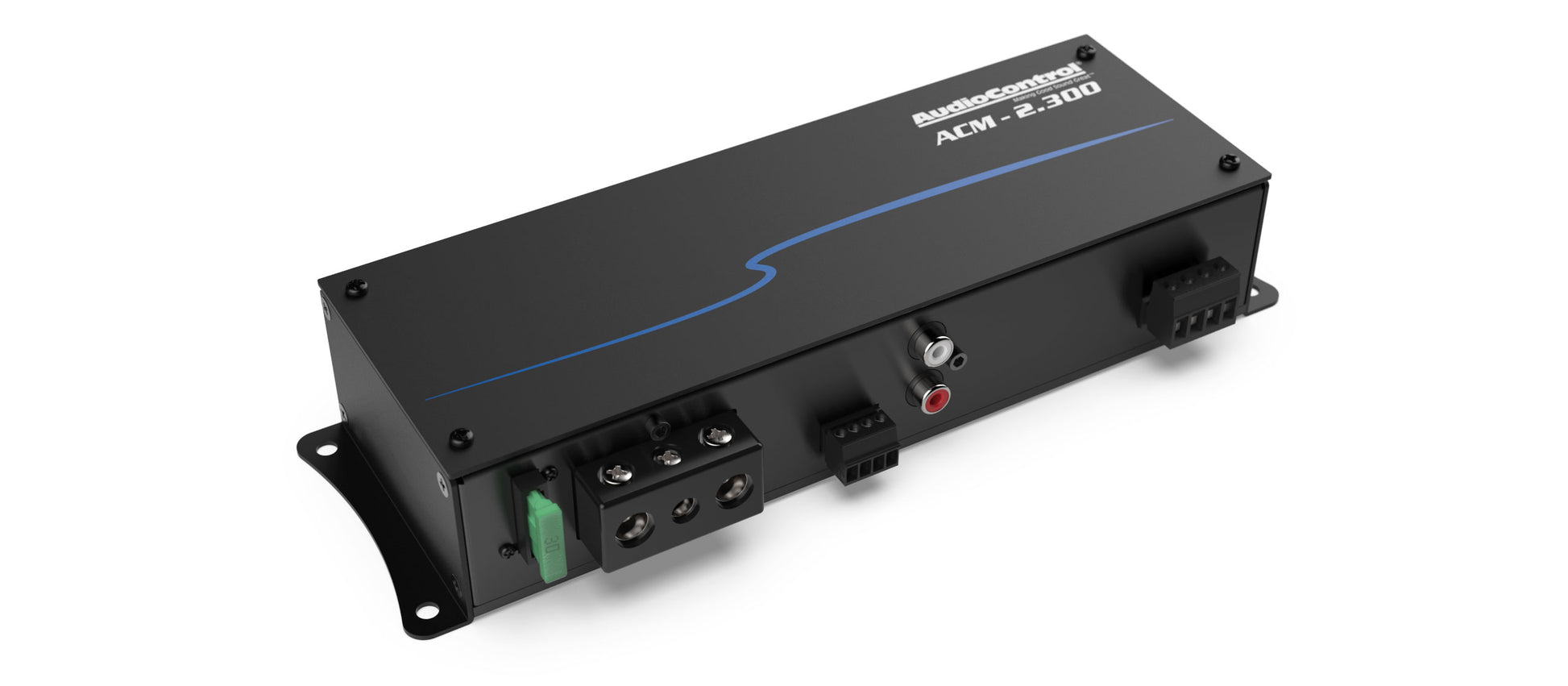

Two Channel Micro Amplifier

ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.

Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.

Features

  • 2 x 150 watts @ 2 ohms
  • 2 x 75 watts @ 4 ohms
  • 300 watts @ 4 ohms bridged
  • GTO TM Signal Sense
  • Active speaker-level inputs for OEM integration
  • RCA Line Inputs
  • Linkwitz-Riley Crossover
  • Reversible Cover Plate
  • Bulletproof 5-year warranty (when installed by an authorised AudioControl dealer)

Product Specifications

Inputs

Preamp Inputs: 2 Balanced
Preamp Input Voltage Range: 500 mV – 6 V RMS
Speaker Level Inputs: 2

Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 75 W x 2 RMS
2 Ω – 150 W x 2 RMS
Bridged 4 Ω – 300 W RMS

Performance

Frequency Response: 10 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.01%
Power / Ground Wire Gauge: 10 to 4 AWG wire
Fuse Rating: 1 x 30 A
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
PFM Subsonic Filter: 32 Hz

Weights & dimensions
Dimensions: 9.4″W x 3.0″D x 1.75″H
Weight: 1.3 lbs. (0.6kg)
