Audison APX570 - Prima 5x7" Speakers

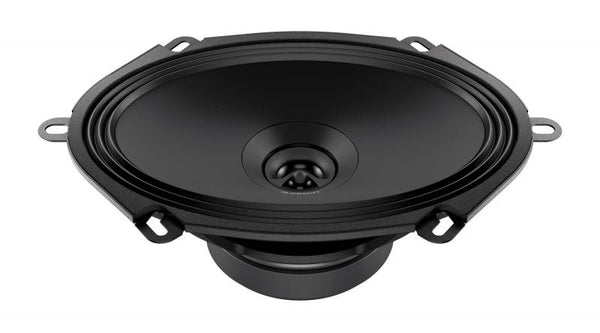

Audison APX 570 — Prima 5×7″ 2-way coaxial speakers

The Audison APX 570 is a 5×7″ coaxial speaker for compatible oval factory locations. Its concentric tweeter places the high-frequency driver at the woofer’s acoustic centre, while the treated-paper cone and shallow Triple Wave surround are designed for controlled movement and OEM-style integration. Confirm the exact mounting dimensions and depth in your vehicle before ordering.

Key features

• 2-way coaxial speaker, 5×7″ elliptical format
• 24 mm concentric tweeter with acoustic lens for off-axis listening
• Water-repellent treated-paper cone and TPU Triple Wave surround
• Low-profile basket and high-current terminals
• Ferrite motor

Specifications

• Power handling: 70 W continuous; 210 W peak
• Impedance: 4 Ω
• Frequency response: 60 Hz–23 kHz
• Sensitivity: 93 dB
• Frame dimensions: 221 × 140 mm
• Mounting dimensions: 182 × 126 mm opening; 63 mm depth
• Weight: 885 g

Important correction: The previous listing incorrectly described the APX 690 tweeter and super tweeter. This is the APX 570; the specs above are for the correct 5×7″ two-way model.

Specifications cross-checked against Audison technical information. Available by enquiry; confirm vehicle fitment with Profound Sound.
