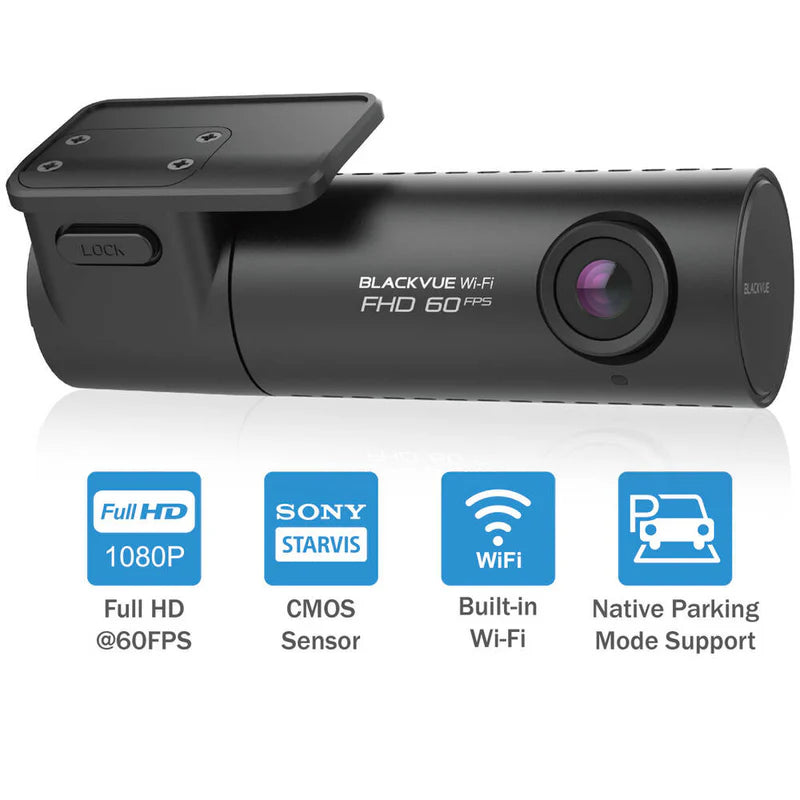

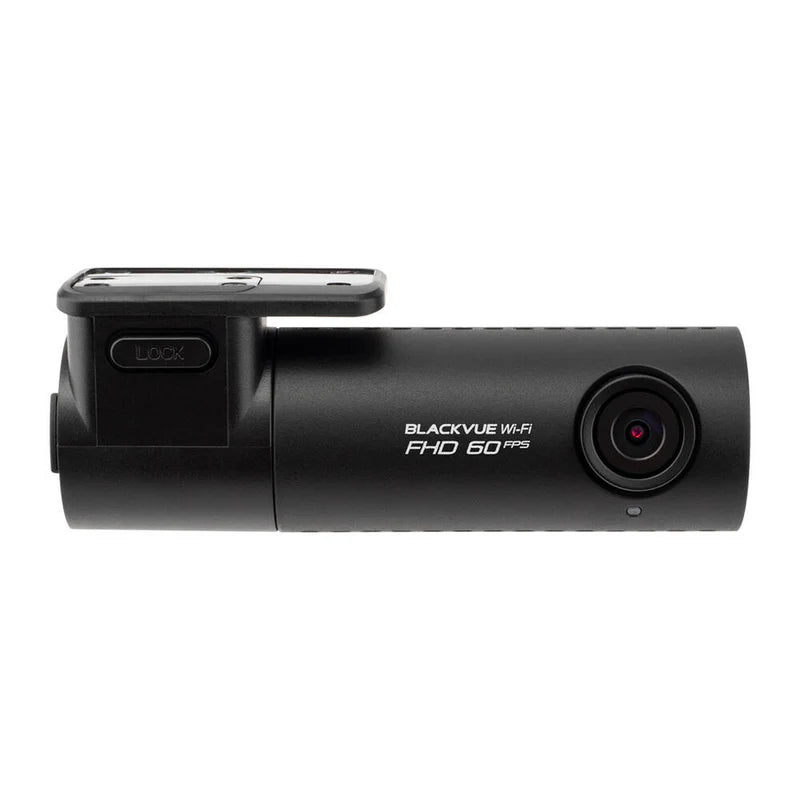

Blackvue 32GB DR590X-1CH-PL Dash Cam

BlackVue 1080P Front Facing Dash Cam 32GB mSD Card

Seamless pairing to the BlackVue App allows you to easily connect to your BlackVue to access files, change configuration settings.

Your videos are safe with Event Files Overwrite Protection. Dashcams record in a loop, overwriting older files when the memory is full. Overwrite protection can prevent event files (triggered manually or by impacts) from being overwritten.

Adaptive Format-Free File Management system improves recording stability and requires less microSD card formatting.

GPS available via optional GNSS module for embedding speed and location data in your videos and allows you to view its location on a map during playback in the BlackVue App or Viewer.

DR590X-1CH Plus

SPECIFICATIONS

• Model Name: DR590X-1CH
• Channel: 1CH
• Highlights: Full HD (Front), Wi-Fi, External GPS, Sony Sensor
• Product Dimensions: Front: W 111.8 mm (4.40?) x H 34 mm (1.34?) / 87.8 (3.10 oz)
• Rear Camera Connection: NA
• Memory Support: microSD card up to 256GB
• Recording Modes: Normal, Event (Impact Detection / Speed Limit), Parking Mode (Motion+Impact Detection)
• Parking Mode: YES (with optional 3-wire hardwiring cable)
• Parking Mode Event Voice Notifications: YES
• Imaging Sensor: Front: Sony STARVIS CMOS Sensor (Approx. 2.1MP)
• Viewing Angle: Front: Diagonal 139Degree , Horizontal 116Degree , Vertical 61Degree Resolution
• Frame Rate: Front: Full HD @30fps Full HD @30fps (Frame rate may vary during Wi-Fi streaming.)
• Video Codec: H.264 (AVC)
• Image Quality and Bitrate Front: Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps
• Format Free: YES (Adaptive)
• Event File Overwrite Protection: YES
• SD Card Failure Alert: YES
• Scheduled Reboot: YES
• Video File Extension: MP4
• Wi-Fi: Built-in (802.11 b.g.n)
• GPS External: (Optional Dual Band: GPS, GLONASS)
• Microphone: Built-in
• Speaker: Built-in
• Impact Sensor: 3-Axis Acceleration Sensor

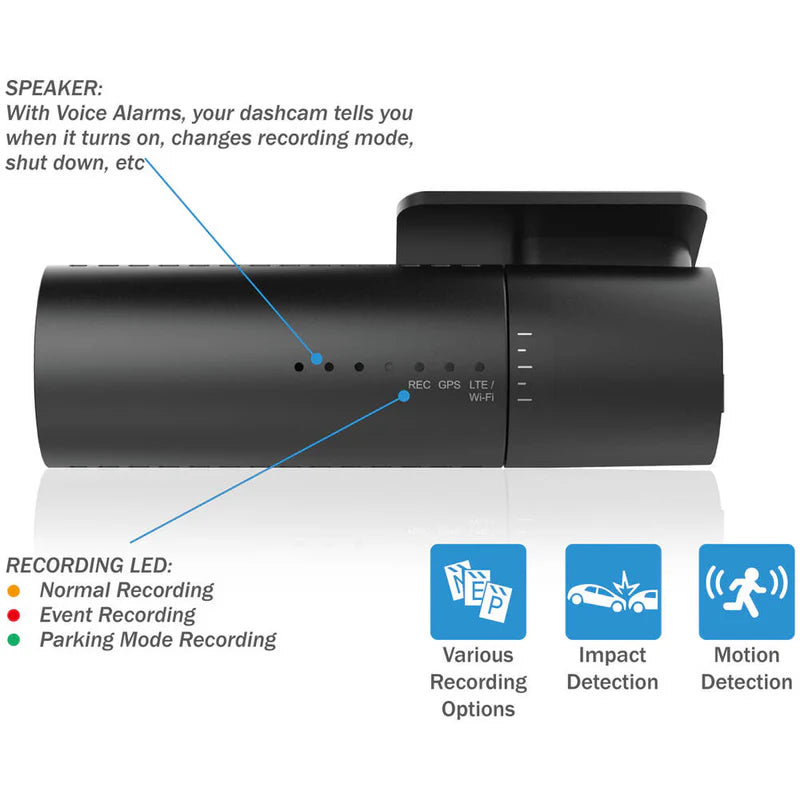

• LED Indicators: Front: Recording LED, GPS LED, Wi-Fi LED, Front Security LED Rear: Rear Security LED

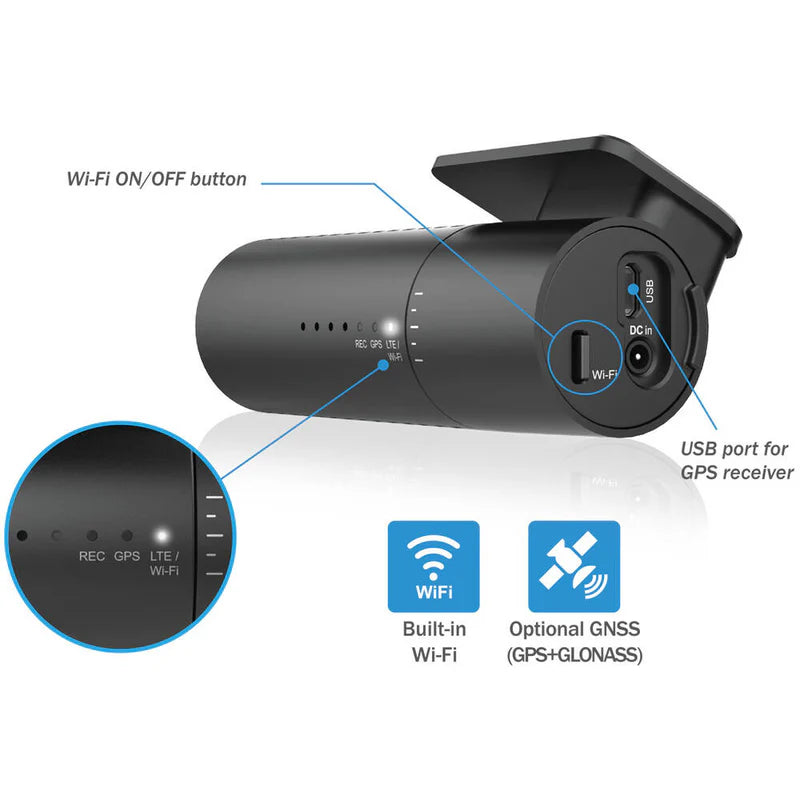

• Button: Wi-Fi ON/OFF
• Operation Temperature: -20 Degree C 70 Degree C (-4Degree F 158Degree F)
• Storage Temperature: -20 Degree C 80 Degree C (-4Degree F 176Degree F)
• High Temp Cut Off: Approx. 70 Degree C (158Degree F)
• Input Power: DC 12V-24V (DC Plug (3.5 x 1.1))
• Power Consumption Hour: Normal Mode (WiFi On/GPS On): 370mA/hour Normal Mode (WiFi Off/GPS On): 330mA/hour Parking Mode (WiFi On/GPS Off): 340mA/hour Parking Mode (WiFi Off/GPS Off): 300mA/hour* Actual power consumption may vary depending on use conditions and environment.
• Certifications: Front:FCC, CE, UKCA, RoHS, Telec, WEEE, IC Rear:FCC, CE, UKCA, RoHS, WEEE
• Software: BlackVue Viewer (Windows 7 or higher and Mac Yosemite OS X (10.10) or higher)
• Application: BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
• Others: Adaptive Format-Free File Management System
