Description
MTX THUNDER500.1 is designed to work with an assortment of subwoofers and is capable of delivering up to 500 watts RMS in an incredibly small package.
This monster amp features a high efficiency class D topology. This type of circuit is preferred for driving subwoofers due to its ability to minimize power loss to heat when you rock all night long.
- 300 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
- variable low-pass filter (40-220 Hz, 12 dB/octave)
- selectable bass boost (0, 6, 12 dB at 50 Hz)
- variable subsonic filter (10-50 Hz, 12 dB/octave)
- Class-D amplifier design
- frequency response: 10-220 Hz
- preamp inputs
- 4-gauge power and ground leads and a 60-amp fuse recommended
- 9-1/2"W x 2-3/16"H x 5-9/16"D
High Power High Value
The THUNDER500.1 is a high powered subwoofer amplifier capable of delivering up to 500 watts RMS power at 2Ω. Additionally, the unit is designed to be installed in almost any vehicle due to its small chassis size.
Technologically Advanced
The THUNDER500.1 features surface mount technology. This design uses smaller more efficient parts that adhere to the circuit board much better than traditional through hole designs making it extremely vibration resistant.
WHAT OUR CUSTOMERS SAY!
Tim:
Like what Thomas said this is also the best amp I have purchased in a long time. I went from a cea compliant 1200 watts rms @ 1ohm amp to this small little powerful beast and i must say this thing 1000 watts at 1 ohm beats my old 1200 watt rms amp by far and the bass quality running it at 1 ohm is truly amazing!! and it gets warm but not hot and that's normal. this amp made me want to get into system building for a hobby all over again thank you mtx!!
I have been a dedicated Rockford Fosgate amp user since 1992. I recently purchased an MTX 500 watt mono block and in the words of Rapunzel, "I am never going back." MTX beats RF on price, specs, customer service and warranty. I wish I had found out about MTX years ago.
Wow! This amp has plenty of sharp clean pop on the bass end and clean crisp highs. This brand was recommended by a installation tech at a store that did not sell MTX. This is after a Soundstream Rubicon amp last three months and needed to be sent back twice for repairs. There is no comparison in the sound quality with the MTX high years ahead! ...Did I say 'Wow"?!
Easy Adjustment

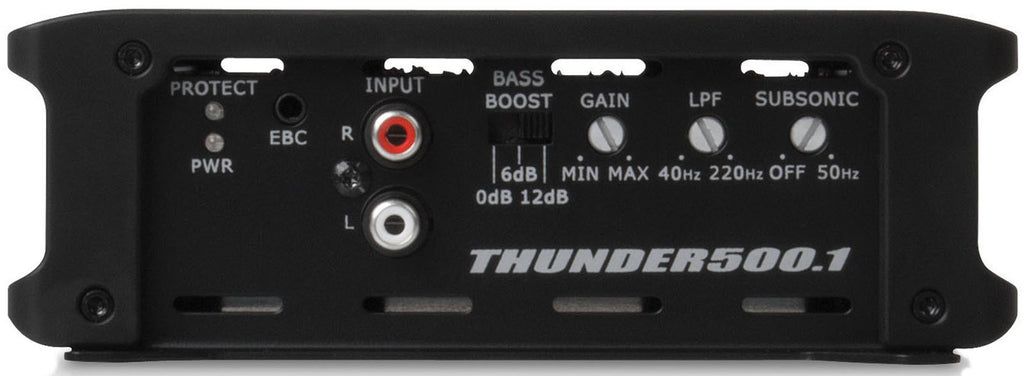

The control panel on the THUNDER500.1 is easy to access and make adjustments. The unit includes a variable low pass filter and a selectable bass boost, 0, +6, or +12dB. The unit also features a subsonic filter that can be used in conjunction with a vented enclosure for optimal sound quality.
Secure Connections

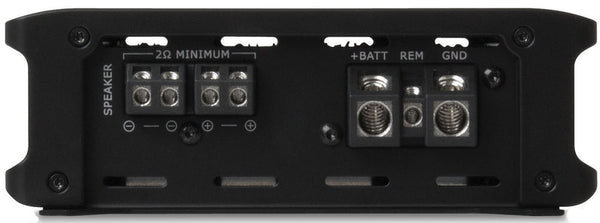

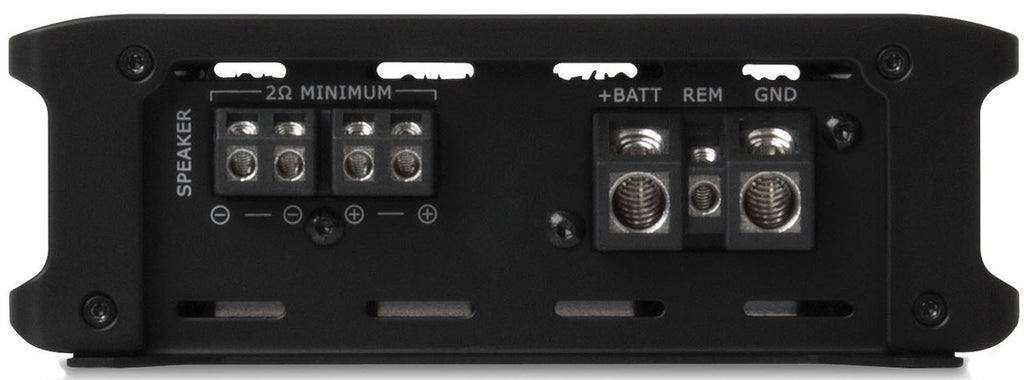

The THUNDER500.1 uses set screw type connections for both its power and speaker terminals. The power and ground inputs will support up to a 4 AWG wire and the speaker inputs can support up to a 12 AWG wire. Set screw type connectors provide the most secure connection minimising power loss and delivering all the power to the amplifier and to the speakers.
