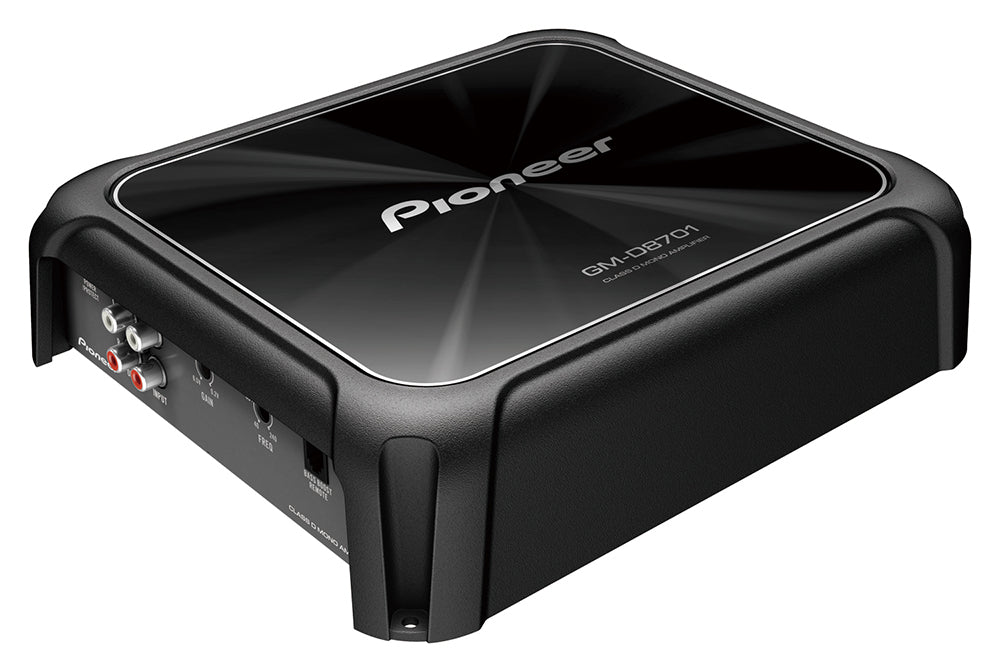

• Pioneer GM-D8701 - Monoblock Amplifier


  • $279.00 $300.00

  • Share this product


Mono Class-D Car Amp, with Bass Boost Remote

  • Compact Design for Versatile Installation Options
  • Wired Bass Boost Remote and Variable Bass Control

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amp might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.


Big power, Small size

Pioneer’s new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

Improved Circuit Design

To prevent circuit shutdown, Pioneer’s new digital amplifier circuit “Protection Control System” senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 Ω connection. This design enhances the flexibility to connect multiple subwoofers to a system.

Variable Low Pass Filter

For extra flexibility, variable LPF make audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D8701 LPF is adjustable from 40 Hz to 240 Hz.

Turn Up the Bass

Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.


Frequency Response: 10Hz to 240kHz

Wattage RMS (4Ω <=1% THD+N): 300W x 1

Wattage RMS (2Ω <=1% THD+N): 500W x 1

Wattage RMS Bridged(4Ω):

Total Harmonic Distortion (1 kHz, 4Ω): <0.05% (100Hz)

Signal-to-Noise ration (IHF-A Weighted): >100 dB

Automatic Signal Sensing & Turn On: Yes

Crossover Type: Variable LPF

Crossover Frequency: 40hZ to 240Hz

Dimensions: 265mm x 60mm x 200mm
