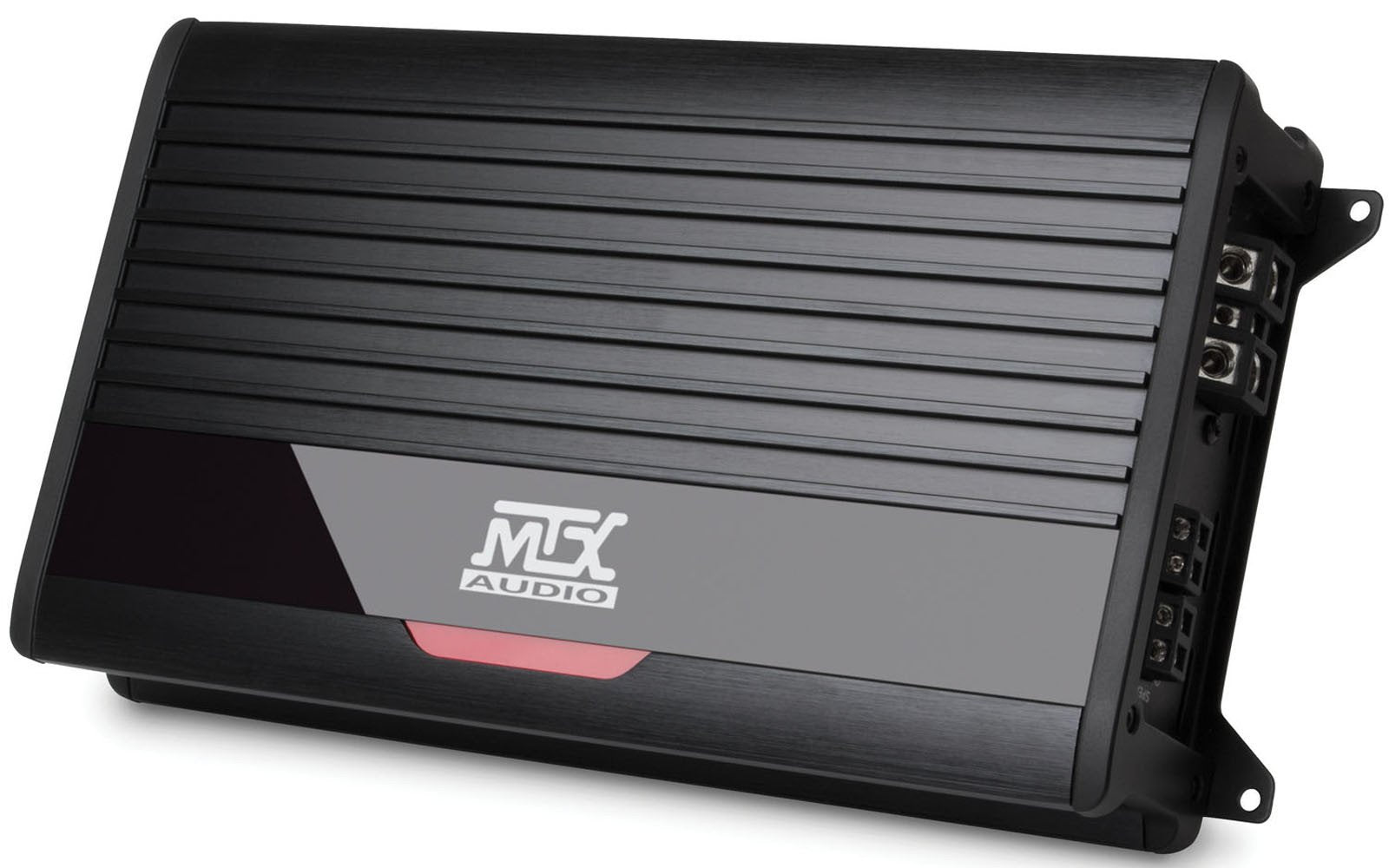

The MTX Audio THUNDER1000.1 is designed to work with an assortment of subwoofers and is capable of delivering up to 1000 watts RMS in an incredibly small package.
This wailin' amp features a high efficiency class D topology. This type of circuit is preferred for driving subwoofers due to its ability to minimize power loss to heat when you rock all night long.
- 600 watts RMS x 1 at 2 ohms
- 1,000 watts RMS x 1 at 1 ohm
- variable low-pass filter (40-220 Hz, 12 dB/octave)
- selectable bass boost (0, 6, 12 dB at 50 Hz)
- variable subsonic filter (10-50 Hz, 12 dB/octave)
- frequency response: 10-220 Hz
- preamplified inputs
- 4-gauge power and ground leads recommended
- 12-7/8"W x 2-3/16"H x 5-9/16"D
High Power High Value
The THUNDER1000.1 is a high powered subwoofer amplifier capable of delivering up to 1000 watts RMS power at 1Ω. Additionally, the unit is designed to be installed in almost any vehicle due to its small chassis size.
The THUNDER1000.1 features surface mount technology. This design uses smaller more efficient parts that adhere to the circuit board much better than traditional through hole designs making it extremely vibration resistant.

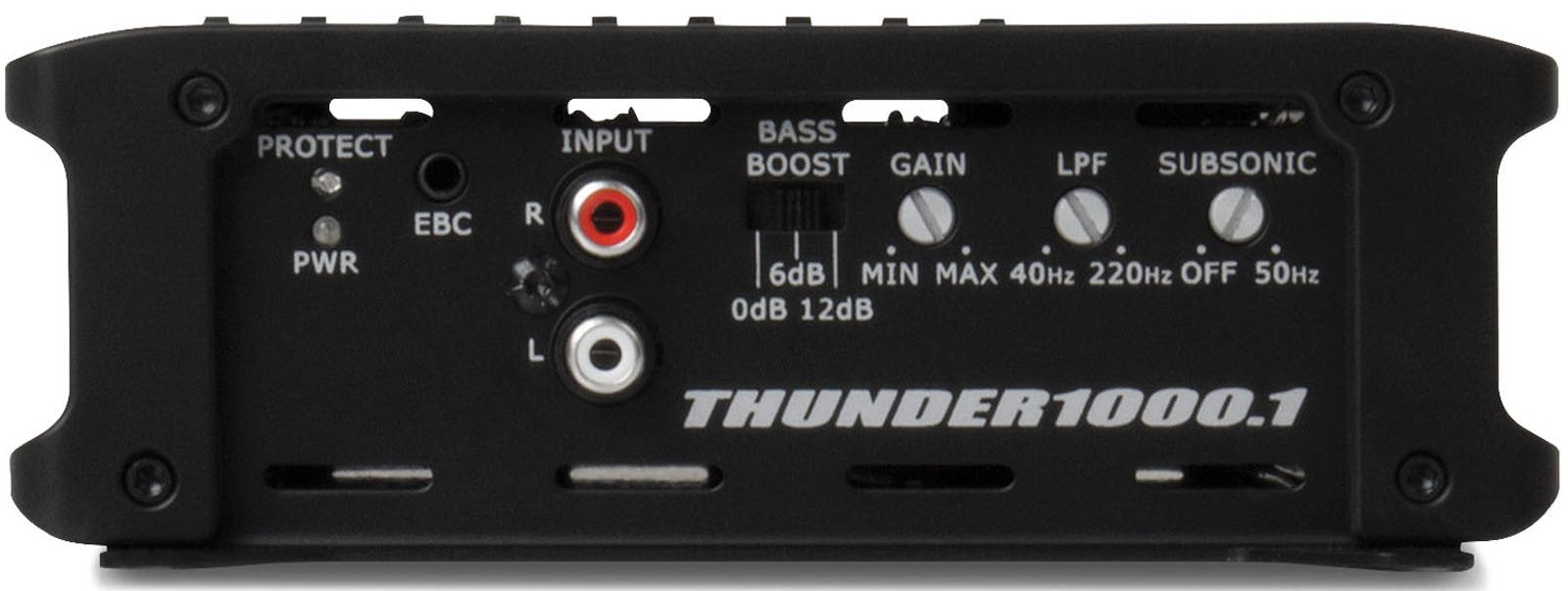

The control panel on the THUNDER1000.1 is easy to access and make adjustments. The unit includes a variable low pass filter and a selectable bass boost, 0, +6, or +12dB. The unit also features a subsonic filter that can be used in conjunction with a vented enclosure for optimal sound quality.

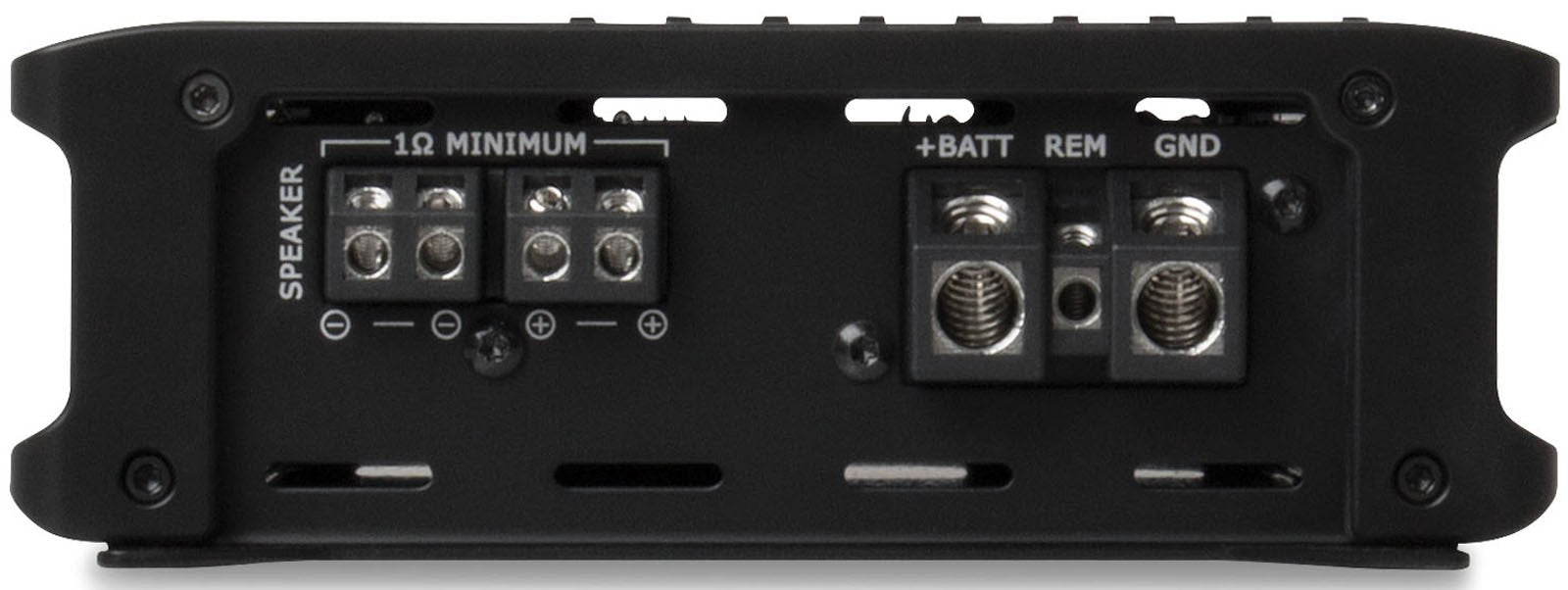

The THUNDER1000.1 uses set screw type connections for both its power and speaker terminals. The power and ground inputs will support up to a 1/0 AWG wire and the speaker inputs can support up to a 12 AWG wire. Set screw type connectors provide the most secure connection minimizing power loss and delivering all the power to the amplifier and to the speakers.
