Description
The MTX Audio TX Series is a brand new premium range of amplifiers designed in the USA and made with high quality MOSFET technology, with high output and fantastic sound quality at a great price you can't beat MTX Audio for the best of car audio technology. Also available is the matching 4 Channel amplifier; 480W RMS TX480D.
-
Features :
- High efficiency class-D amplifier designed for subwoofer(s)
- Bridge mode with 2x TX81000D amplifiers
- Thermo regulated fan connector (for one or two external fans)
- 2Ω~4Ω compatible
- Complete 24dB low pass x-over with 24dB subsonic filter

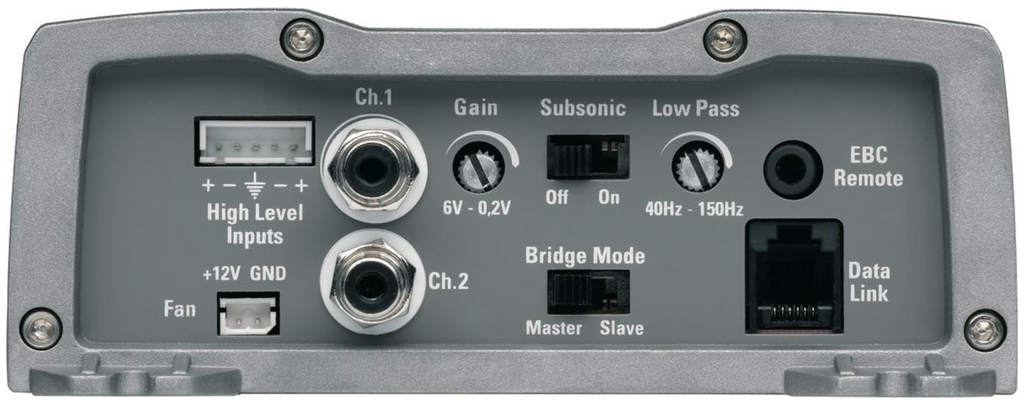

- High and low level inputs
- Full aluminum construction
- Perfectly matches with one TX812 or one TX815

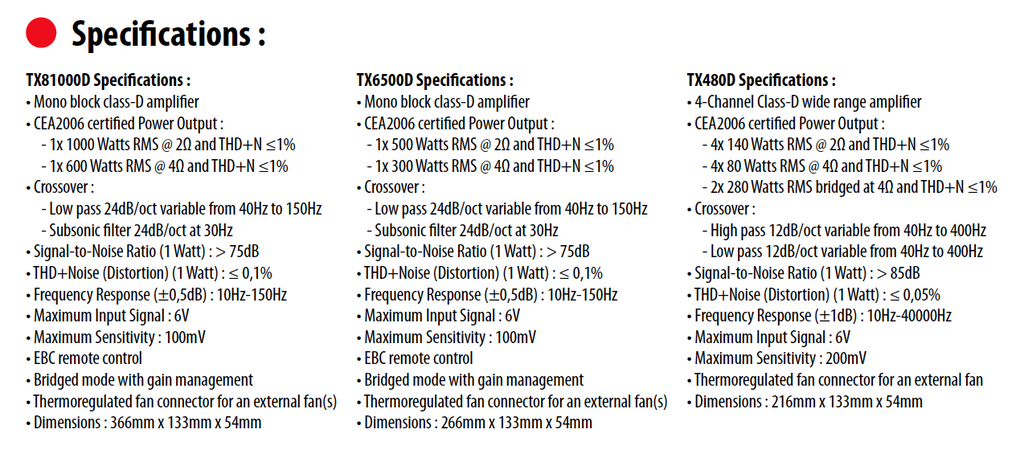

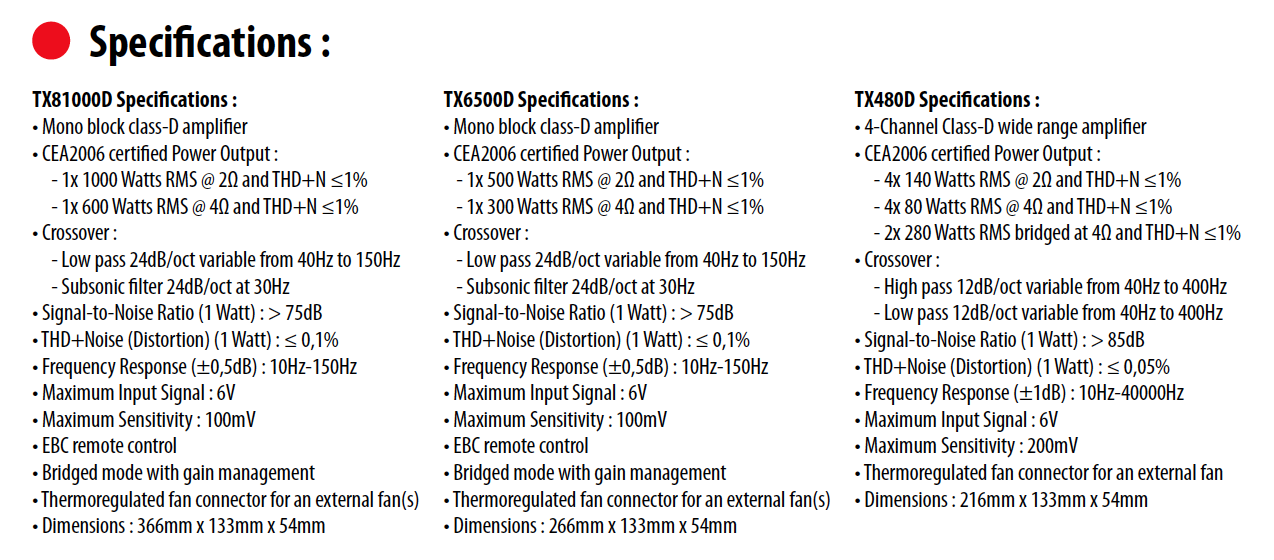

Specifications :
- Class-D Mono Block amplifier
- CEA RMS Power : 1x 1000W @ 2Ω, THD+N ≤1%
- CEA RMS Power in bridge mode : 1x 2000W
- CEA RMS Power : 1x 600W @ 4Ω, THD+N ≤1%
- Low pass x-over : 24dB/oct variable from 40Hz to 150Hz
- Subsonic filter : 24dB/oct @ 30Hz
- Signal-to-Noise Ratio (1 watt) : > 80dB
- THD+Noise (Distortion) (1 watt) : ≤ 1%
- Frequency Response (±1dB) : 20Hz-150Hz
- Maximum Input Signal : 6V
- Maximum Sensitivity : 200mV
- High level input
- EBC remote control included
- Bridge link cable included
- Dimensions : 125mm x 365mm x 50mm
