• Pioneer GM-D9705 - 5 Channel Amplifier

    Pioneer

  • $700.00

  • Click here to be notified by email when Pioneer GM-D9705 - 5 Channel Amplifier becomes available.

  • ← Previous Product
  • Share this product

Description

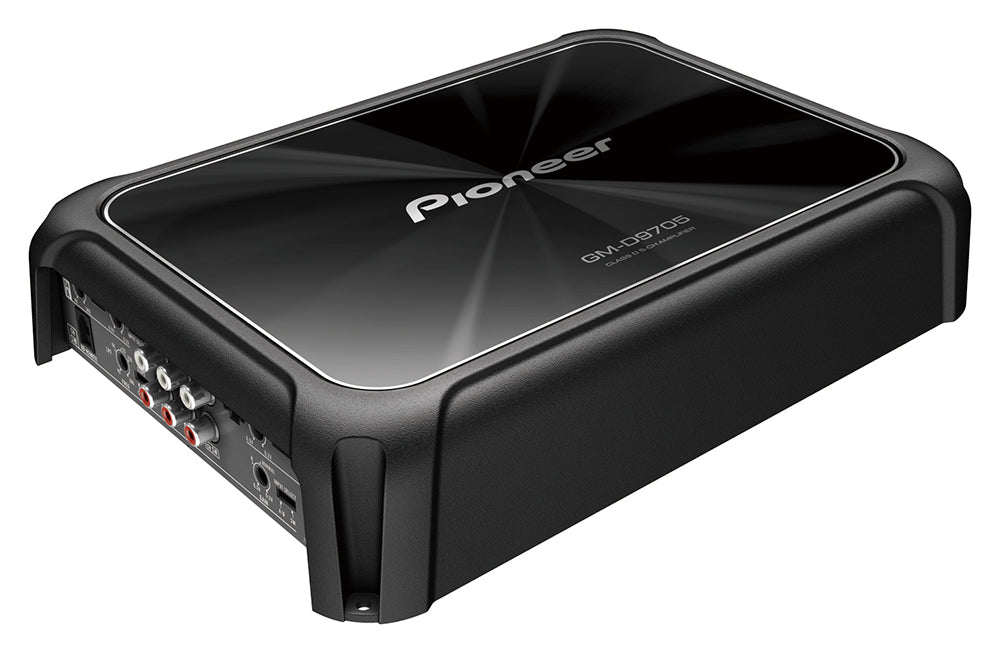

GM-D9705

Class-D 5-Channel Amplifier with Wired Bass Boost Remote

  • 2,000 Watts Max Power
  • Block Terminal
  • Variable High Pass and Low Pass Filters
  • Equipped with A/B-SW Input Select

Pioneer’s 5-channel amplifier produces impressive power in an all-in-one solution designed to deliver big sound without sacrificing space. Ideal for any vehicle including compact vehicles and pick-up trucks with limited real estate, the GM-D9705 also offers installation flexibility for a variety of other applications including boats and ATVs/UTVs.

Overview

Packs a Punch

The 5-channel amplifier is rated at 2000 watts max with the A and B channels rated at 75 watts x 4 (RMS) and the subwoofer output rated at 600 watts at 2 (RMS). Compared to similarly priced multichannel amplifiers, the variable crossover networks on the GM-D9705 offer increased flexibility and give listeners more control. Block terminals for a cleaner installation and direct wire contact minimizing resistance.



Variable Low Pass Filter

For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D9705 LPF is adjustable from 40 Hz to 240 Hz.



Turn Up the Bass

The GM-D9705 also features a Bass Boost Remote for optimal bass level adjustment according to listening preferences and music characteristics.



Speaker Level Inputs

What, you DON’T own a Pioneer headunit? Well, we won’t hold it against you. In fact we’ll even help you build onto your system. The GM-D9705’s speaker level inputs allow simplify integration into existing aftermarket or factory installed (OEM) integrated entertainment systems so you can connect your OEM unit (or any unit that doesn’t have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you’ve got a Pioneer amp in your vehicle.



Specifications



Frequency Response: 10Hz ~ 50kHz (A-/B-Ch) / 10Hz ~ 500Hz (Subwoofer-Ch)

Wattage RMS (4Ω <=1% THD+N): 75W x 4 (A-/B-Ch) / 350W x 1 (Subwoofer-Ch)

Wattage RMS (2Ω <=1% THD+N): 100W x 4 (A-/B-Ch) / 600W x 1 (Subwoofer-Ch)

Wattage RMS Bridged(4Ω): 200W x 2

Total Harmonic Distortion (1 kHz, 4Ω): <0.05% (A-/B-Ch: 1kHz) / SUB CH: <0.05% (100Hz)

Signal-to-Noise ration (IHF-A Weighted): >94 dB

Speaker Level Input: Yes

Automatic Signal Sensing & Turn On: Yes

Crossover Type: Variable LPF/HPF

Crossover Frequency: 40Hz to 240Hz

Dimensions: 315mm x 60mm x 200mm
